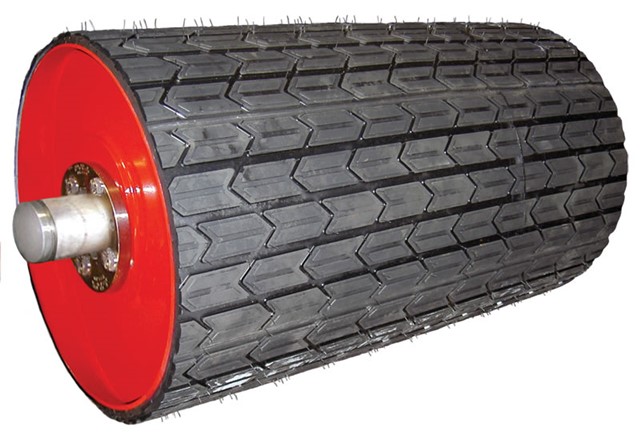

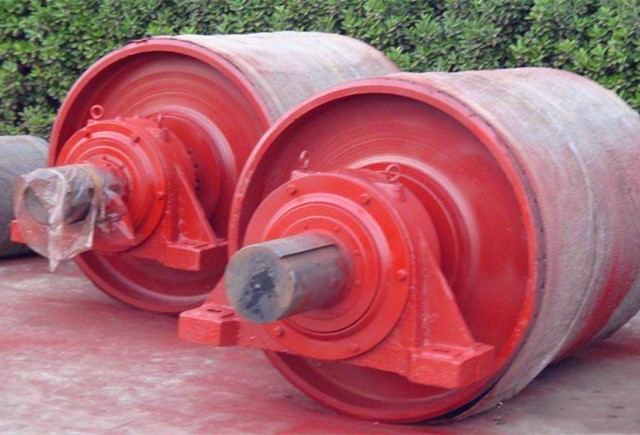

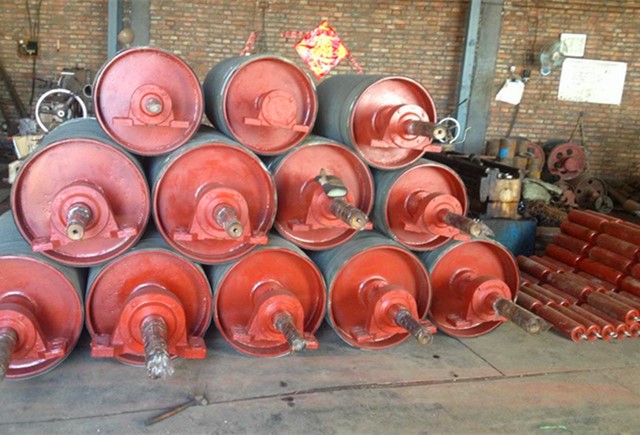

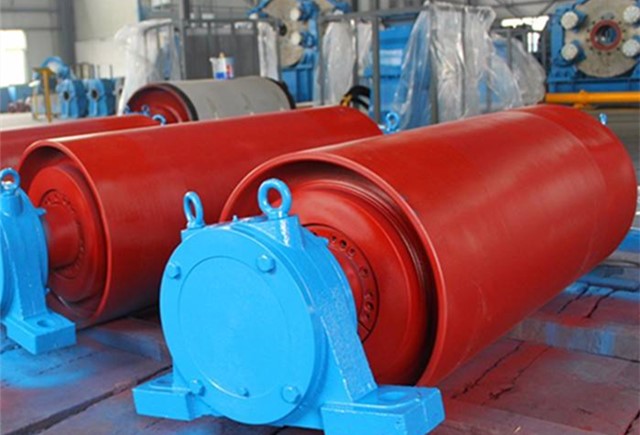

    传动滚筒

    库桥机器是皮带输送机传动滚筒生产厂家，提供包胶、铸胶、陶瓷等人字形和菱形花纹表面传动滚筒。传动滚筒型号及价格请在线咨询。

    2024 上海宝马国际工程机械展
    • 应用领域
    • 技术亮点
    • 产品参数
    • 工程实例
    咨询技术客服
    应用领域

    传动滚筒是输送机传递动力的部件，它是依靠与输送带之间的摩擦力带动输送带运行的部件，其驱动带式输送机的方式有单滚筒、双滚筒及多滚筒之分。传动滚筒表面有裸露光钢面，人字形和菱形花纹橡胶覆面。小功率、小带宽及环境干燥时可采用裸露光钢面。人字形花纹胶面摩擦系数大，防滑性和排水性好，但有方向性。菱形胶面可用于双向运行的输送机。应用于带式输送机，轴承座分为整体式和剖分式。

    技术亮点

    1、传动滚筒结构简单紧凑，占用空间面积小；

    2、传动滚筒密封良好，适用于粉尘浓度大、潮湿泥泞的工作场所；

    3、传动滚筒使用维修方便，操作安全可靠，寿命长；

    4、传动滚筒能源消耗少，且容易实现集中控制；

    5、传动滚筒可满足各种逆止、制动、包胶等需求；

    6、传动滚筒轴头上采取防锈和防护措施。

    产品参数

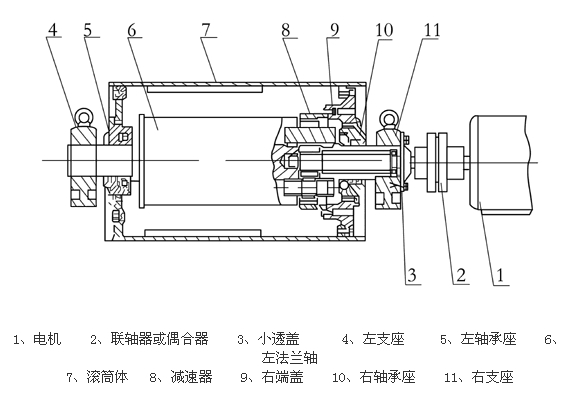

    传动滚筒结构图
    传动滚筒结构图

    传动滚筒尺寸表
    序号 带宽  B 筒皮直径D/mm 图号 　 许用  扭矩/kN.m 许用  合力/kN.m 菱形铸胶/mm 铸胶面积/m2 重量/kg 备注
    L
    1 400 250 40A102-D-Z 500 0.63 15 10 0.4084 98 单出轴，整体式轴承座
    2 315 40A103-D-Z 0.63 12 0.5105 112
    3 40A203-D-Z 1 20 0.5105 141
    4 400 40A104-D-Z 1 15 0.6440 132
    5 40A204-D-Z 1.6 24 0.6440 160
    6 500 250 50A102-D-Z 600 0.63 15 10 0.4901 109
    7 315 50A103-D-Z 0.63 12 0.6126 125
    8 50A203-D-Z 1 20 0.6126 156
    9 400 50A104-D-Z 1.25 20 0.7728 148
    10 50A240-D-Z 2 30 0.7728 179
    11 500 50A105-D-Z 1.6 30 0.9613 206
    12 50A205-D-Z 2.7 49 0.9613 256
    13 650 315 65A103-D-Z 750 1.25 25 10 0.7658 144
    14 400 65A104-D-Z 1.25 25 0.9660 170
    15 65A204-D-Z 2 35 0.9660 204
    16 500 65A105-D-Z 3.5 40 1.2017 291
    17 65A205-D-Z 6.3 59 1.2017 390
    18 630 65A106-D-Z 4.1 40 1.5080 339
    19 65A206-D-Z 7.3 80 1.5080 447
    20 800 315 80A103-D-Z 950 1.25 25 10 0.9700 173
    21 400 80A104-D-Z 1.25 20 1.2237 204
    22 80A204-D-Z 2 30 1.2237 244
    23 500 80A105-D-Z 2.5 30 1.5221 344
    24 80A205-D-Z 4.1 40 1.5221 457
    25 630 80A106-D-Z 6 50 1.9101 525
    26 80A206-D-Z 12 80 1.9101 747
    27 80A306-D-Z 20 100 1.9101 931
    28 800 80A107-D-Z 7 50 12 2.4234 629
    29 80A207-D-Z 12 80 2.4234 865
    30 80A307-D-Z 20 110 2.4234 1056
    31 80A407-D-Z 32 160 2.4234 1257
    32 1000 80A108-D-Z 12 80 3.0203 1049
    33 80A208-D-Z 20 120 3.0203 1205
    34 80A308-D-Z 32 190 3.0203 1462
    35 80A408-D-Z 40 240 3.0203 1756
    36 80A508-D-Z 52 310 3.0203 2478
    37 80A608-D-Z 66 400 3.0203 2848
    38 1250 80A109-D-Z 40 270 15 3.7754 2957
    39 80A209-D-Z 66 320 3.7754 3702
    40 80A309-D-Z 80 450 3.7754 3958
    41 80A409-D-Z 120 520 3.7754 4169
    42 1000 400 100A104-D-Z 1150 2.5 30 10 1.4813 344
    43 500 100A105-D-Z 3.5 45 1.8425 388
    44 100A205-D-Z 6.3 75 1.8425 508
    45 630 100A106-D-Z 6 40 2.3122 584
    46 100A206-D-Z 12 73 2.3122 823
    47 800 100A107-D-Z 12 73 12 2.9336 955
    48 100A207-D-Z 20 110 2.9336 1161
    49 100A307-D-Z 27 160 2.9336 1370
    50 100A407-D-Z 40 190 2.9336 1687
    51 100A507-D-Z 52 320 2.9336 2313
    52 1000 100A108-D-Z 12 80 3.6562 1172
    53 100A208-D-Z 20 110 3.6562 1336
    54 100A308-D-Z 27 170 3.6562 1602
    55 100A408-D-Z 40 210 3.6562 1908
    56 100A508-D-Z 52 330 3.6562 2683
    57 100A608-D-Z 66 400 3.6562 3059
    58 1250 100A109-D-Z 52 320 15 4.5702 3498
    59 100A209-D-Z 66 450 4.5702 3960
    60 100A309-D-Z 80 520 4.5702 4229
    61 100A409-D-Z 120 660 4.5702 4734
    62 1400 100A110-D-Z 66 450 5.1122 4229
    63 100A210-D-Z 120 520 5.1122 5010
    64 100A310-D-Z 160 660 5.1122 5816
    65 1600 100A111-D-Z 120 520 5.8347 6691
    66 100A211-D-Z 160 660 5.8347 8356
    67 1200 500 120A105-D-Z 1400 6.3 60 10 2.2431 588
    68 630 120A106-D-Z 12 52 2.8149 921
    69 120A206-D-Z 20 85 2.8149 1134
    70 800 120A107-D-Z 12 80 12 3.5714 1071
    71 120A207-D-Z 20 110 3.5714 1296
    72 120A307-D-Z 27 140 3.5714 1515
    73 120A407-D-Z 40 180 3.5714 1860
    74 120A507-D-Z 52 230 3.5714 2508
    75 1000 120A108-D-Z 12 80 4.4510 1321
    76 120A208-D-Z 20 110 4.4510 1496
    77 120A308-D-Z 27 160 4.4510 1771
    78 120A408-D-Z 40 210 4.4510 2108
    79 120A508-D-Z 52 290 4.4510 2906
    80 120A608-D-Z 66 330 4.4510 3321
    81 120A708-D-Z 80 450 4.4510 3825
    82 1250 120A109-D-Z 52 320 15 5.5638 4254
    83 120A209-D-Z 66 450 5.5638 4542
    84 120A309-D-Z 80 520 5.5638 5108
    85 120A409-D-Z 120 660 5.5638 5897
    86 1400 120A110-D-Z 80 520 6.2235 5406
    87 120A210-D-Z 120 660 6.2235 6254
    88 120A310-D-Z 160 800 6.2235 8333
    89 1600 120A111-D-Z 120 660 7.1031 7187
    90 120A211-D-Z 160 800 7.1031 9059
    91 1400 800 140A107-D-Z 1600 20 100 12 4.0816 1422
    92 140A207-D-Z 27 130 4.0816 1633
    93 140A307-D-Z 40 170 4.0816 2004
    94 140A407-D-Z 52 210 4.0816 2674
    95 140A507-D-Z 66 320 4.0816 3204
    96 1000 140A108-D-Z 20 100 5.0869 1633
    97 140A208-D-Z 27 160 5.0869 1902
    98 140A308-D-Z 40 210 5.0869 2267
    99 140A408-D-Z 52 260 5.0869 3089
    100 140A508-D-Z 66 300 5.0869 3534
    101 140A608-D-Z 80 450 5.0869 4042
    102 1250 140A109-D-Z 52 260 15 6.3586 4507
    103 140A209-D-Z 66 450 6.3586 4811
    104 140A309-D-Z 80 520 6.3586 5403
    105 140A409-D-Z 120 660 6.3586 6255
    106 1400 140A110-D-Z 80 520 7.1126 5722
    107 140A210-D-Z 120 800 7.1126 6635
    108 140A310-D-Z 160 1050 7.1126 8715
    109 1600 140A111-D-Z 120 800 8.1179 7621
    110 140A211-D-Z 160 1050 8.1179 9478
    111 1600 800 160A107-D-Z 1800 20 120 12 4.5918 1744
    112 160A207-D-Z 27 160 4.5918 2135
    113 160A307-D-Z 40 240 4.5918 2836
    114 160A407-D-Z 52 320 4.5918 3389
    115 160A507-D-Z 66 450 4.5918 3892
    116 1000 160A108-D-Z 27 160 5.7227 2419
    117 160A208-D-Z 40 240 5.7227 3273
    118 160A308-D-Z 52 320 5.7227 3742
    119 160A408-D-Z 66 450 5.7227 4288
    120 160A508-D-Z 80 520 5.7227 4616
    121 160A608-D-Z 120 650 5.7227 5130
    122 1250 160A109-D-Z 66 450 15 7.1534 4799
    123 160A209-D-Z 80 520 7.1534 5084
    124 160A309-D-Z 120 650 7.1534 5727
    125 160A409-D-Z 160 800 7.1534 6577
    126 1400 160A110-D-Z 80 520 8.0016 6065
    127 160A210-D-Z 120 800 8.0016 6977
    128 160A310-D-Z 160 1050 8.0016 9096
    129 1600 160A111-D-Z 80 520 9.1326 7285
    130 160A211-D-Z 120 800 9.1326 8018
    131 160A311-D-Z 160 1200 9.1326 9893
    132 1800 800 180A107-D-Z 2000 20 160 12 5.1019 1866
    133 180A207-D-Z 27 240 5.1019 2275
    134 180A307-D-Z 40 320 5.1019 2995
    135 180A407-D-Z 52 450 5.1019 3573
    136 180A507-D-Z 66 520 5.1019 4089
    137 1000 180A108-D-Z 40 320 6.3586 3454
    138 180A208-D-Z 52 450 6.3586 3950
    139 180A308-D-Z 66 520 6.3586 4491
    140 180A408-D-Z 80 650 6.3586 4843
    141 180A508-D-Z 120 800 6.3586 5388
    142 1250 180A109-D-Z 66 450 15 7.9482 5350
    143 180A209-D-Z 80 520 7.9482 6018
    144 180A309-D-Z 120 650 7.9482 6901
    145 1400 180A110-D-Z 80 450 8.8907 6377
    146 180A210-D-Z 120 800 8.8907 7320
    147 180A310-D-Z 160 1050 8.8907 9479
    148 1600 180A111-D-Z 120 800 10.1473 8343
    149 180A211-D-Z 160 1050 10.1473 10306
    150 2000 800 200A107-D-Z 2200 20 160 12 5.6121 1981
    151 200A207-D-Z 27 240 5.6121 2417
    152 200A307-D-Z 40 320 5.6121 3151
    153 200A407-D-Z 52 450 5.6121 3753
    154 200A507-D-Z 66 520 5.6121 4284
    155 1000 200A108-D-Z 40 320 6.9944 3632
    156 200A208-D-Z 52 450 6.9944 4156
    157 200A308-D-Z 66 520 6.9944 4730
    158 200A408-D-Z 80 650 6.9944 5088
    159 200A508-D-Z 120 800 6.9944 5879
    160 1250 200A109-D-Z 66 450 15 8.7431 5619
    161 200A209-D-Z 80 520 8.7431 6314
    162 200A309-D-Z 120 800 8.7431 7223
    163 1400 200A110-D-Z 80 450 9.7798 6692
    164 200A210-D-Z 120 800 9.7798 7663
    165 200A310-D-Z 160 1200 9.7798 9861
    166 1600 200A111-D-Z 120 800 11.1621 8738
    167 200A211-D-Z 160 1200 11.1621 10720
    168 400 250 40A102-D-P 500 0.63 15 10 0.4084 98 单出轴，剖分式轴承座
    169 315 40A103-D-P 0.63 12 0.5105 112
    170 40A203-D-P 1 20 0.5105 141
    171 400 40A104-D-P 1 15 0.6440 132
    172 40A204-D-P 1.6 24 0.6440 160
    173 500 250 50A102-D-P 600 0.63 15 10 0.4901 109
    174 315 50A103-D-P 0.63 12 0.6126 125
    175 50A203-D-P 1 20 0.6126 156
    176 400 50A104-D-P 1.25 20 0.7728 148
    177 50A240-D-P 2 30 0.7728 179
    178 500 50A105-D-P 1.6 30 0.9613 206
    179 50A205-D-P 2.7 49 0.9613 256
    180 650 315 65A103-D-P 750 1.25 25 10 0.7658 144
    181 400 65A104-D-P 1.25 25 0.9660 170
    182 65A204-D-P 2 35 0.9660 204
    183 500 65A105-D-P 3.5 40 1.2017 291
    184 65A205-D-P 6.3 59 1.2017 390
    185 630 65A106-D-P 4.1 40 1.5080 339
    186 65A206-D-P 7.3 80 1.5080 447
    187 800 315 80A103-D-P 950 1.25 25 10 0.9700 173
    188 400 80A104-D-P 1.25 20 1.2237 204
    189 80A204-D-P 2 30 1.2237 244
    190 500 80A105-D-P 2.5 30 1.5221 344
    191 80A205-D-P 4.1 40 1.5221 457
    192 630 80A106-D-P 6 50 1.9101 525
    193 80A206-D-P 12 80 1.9101 747
    194 80A306-D-P 20 100 1.9101 931
    195 800 80A107-D-P 7 50 12 2.4234 629
    196 80A207-D-P 12 80 2.4234 865
    197 80A307-D-P 20 110 2.4234 1056
    198 80A407-D-P 32 160 2.4234 1257
    199 1000 80A108-D-P 12 80 3.0203 1049
    200 80A208-D-P 20 120 3.0203 1205
    201 80A308-D-P 32 190 3.0203 1462
    202 80A408-D-P 40 240 3.0203 1756
    203 80A508-D-P 52 310 3.0203 2478
    204 80A608-D-P 66 400 3.0203 2848
    205 1250 80A109-D-P 40 270 15 3.7754 2957
    206 80A209-D-P 66 320 3.7754 3702
    207 80A309-D-P 80 450 3.7754 3958
    208 80A409-D-P 120 520 3.7754 4169
    209 1000 400 100A104-D-P 1150 2.5 30 10 1.4813 344
    210 500 100A105-D-P 3.5 45 1.8425 388
    211 100A205-D-P 6.3 75 1.8425 508
    212 630 100A106-D-P 6 40 2.3122 584
    213 100A206-D-P 12 73 2.3122 823
    214 800 100A107-D-P 12 73 12 2.9336 955
    215 100A207-D-P 20 110 2.9336 1161
    216 100A307-D-P 27 160 2.9336 1370
    217 100A407-D-P 40 190 2.9336 1687
    218 100A507-D-P 52 320 2.9336 2313
    219 1000 100A108-D-P 12 80 3.6562 1172
    220 100A208-D-P 20 110 3.6562 1336
    221 100A308-D-P 27 170 3.6562 1602
    222 100A408-D-P 40 210 3.6562 1908
    223 100A508-D-P 52 330 3.6562 2683
    224 100A608-D-P 66 400 3.6562 3059
    225 1250 100A109-D-P 52 320 15 4.5702 3498
    226 100A209-D-P 66 450 4.5702 3960
    227 100A309-D-P 80 520 4.5702 4229
    228 100A409-D-P 120 660 4.5702 4734
    229 1400 100A110-D-P 66 450 5.1122 4229
    230 100A210-D-P 120 520 5.1122 5010
    231 100A310-D-P 160 660 5.1122 5816
    232 1600 100A111-D-P 120 520 5.8347 6691
    233 100A211-D-P 160 660 5.8347 8356
    234 1200 500 120A105-D-P 1400 6.3 60 10 2.2431 588
    235 630 120A106-D-P 12 52 2.8149 921
    236 120A206-D-P 20 85 2.8149 1134
    237 800 120A107-D-P 12 80 12 3.5714 1071
    238 120A207-D-P 20 110 3.5714 1296
    239 120A307-D-P 27 140 3.5714 1515
    240 120A407-D-P 40 180 3.5714 1860
    241 120A507-D-P 52 230 3.5714 2508
    242 1000 120A108-D-P 12 80 4.4510 1321
    243 120A208-D-P 20 110 4.4510 1496
    244 120A308-D-P 27 160 4.4510 1771
    245 120A408-D-P 40 210 4.4510 2108
    246 120A508-D-P 52 290 4.4510 2906
    247 120A608-D-P 66 330 4.4510 3321
    248 120A708-D-P 80 450 4.4510 3825
    249 1250 120A109-D-P 52 320 15 5.5638 4254
    250 120A209-D-P 66 450 5.5638 4542
    251 120A309-D-P 80 520 5.5638 5108
    252 120A409-D-P 120 660 5.5638 5897
    253 1400 120A110-D-P 80 520 6.2235 5406
    254 120A210-D-P 120 660 6.2235 6254
    255 120A310-D-P 160 800 6.2235 8333
    256 1600 120A111-D-P 120 660 7.1031 7187
    257 120A211-D-P 160 800 7.1031 9059
    258 1400 800 140A107-D-P 1600 20 100 12 4.0816 1422
    259 140A207-D-P 27 130 4.0816 1633
    260 140A307-D-P 40 170 4.0816 2004
    261 140A407-D-P 52 210 4.0816 2674
    262 140A507-D-P 66 320 4.0816 3204
    263 1000 140A108-D-P 20 100 5.0869 1633
    264 140A208-D-P 27 160 5.0869 1902
    265 140A308-D-P 40 210 5.0869 2267
    266 140A408-D-P 52 260 5.0869 3089
    267 140A508-D-P 66 300 5.0869 3534
    268 140A608-D-P 80 450 5.0869 4042
    269 1250 140A109-D-P 52 260 15 6.3586 4507
    270 140A209-D-P 66 450 6.3586 4811
    271 140A309-D-P 80 520 6.3586 5403
    272 140A409-D-P 120 660 6.3586 6255
    273 1400 140A110-D-P 80 520 7.1126 5722
    274 140A210-D-P 120 800 7.1126 6635
    275 140A310-D-P 160 1050 7.1126 8715
    276 1600 140A111-D-P 120 800 8.1179 7621
    277 140A211-D-P 160 1050 8.1179 9478
    278 1600 800 160A107-D-P 1800 20 120 12 4.5918 1744
    279 160A207-D-P 27 160 4.5918 2135
    280 160A307-D-P 40 240 4.5918 2836
    281 160A407-D-P 52 320 4.5918 3389
    282 160A507-D-P 66 450 4.5918 3892
    283 1000 160A108-D-P 27 160 5.7227 2419
    284 160A208-D-P 40 240 5.7227 3273
    285 160A308-D-P 52 320 5.7227 3742
    286 160A408-D-P 66 450 5.7227 4288
    287 160A508-D-P 80 520 5.7227 4616
    288 160A608-D-P 120 650 5.7227 5130
    289 1250 160A109-D-P 66 450 15 7.1534 4799
    290 160A209-D-P 80 520 7.1534 5084
    291 160A309-D-P 120 650 7.1534 5727
    292 160A409-D-P 160 800 7.1534 6577
    293 1400 160A110-D-P 80 520 8.0016 6065
    294 160A210-D-P 120 800 8.0016 6977
    295 160A310-D-P 160 1050 8.0016 9096
    296 1600 160A111-D-P 80 520 9.1326 7285
    297 160A211-D-P 120 800 9.1326 8018
    298 160A311-D-P 160 1200 9.1326 9893
    299 1800 800 180A107-D-P 2000 20 160 12 5.1019 1866
    300 180A207-D-P 27 240 5.1019 2275
    301 180A307-D-P 40 320 5.1019 2995
    302 180A407-D-P 52 450 5.1019 3573
    303 180A507-D-P 66 520 5.1019 4089
    304 1000 180A108-D-P 40 320 6.3586 3454
    305 180A208-D-P 52 450 6.3586 3950
    306 180A308-D-P 66 520 6.3586 4491
    307 180A408-D-P 80 650 6.3586 4843
    308 180A508-D-P 120 800 6.3586 5388
    309 1250 180A109-D-P 66 450 15 7.9482 5350
    310 180A209-D-P 80 520 7.9482 6018
    311 180A309-D-P 120 650 7.9482 6901
    312 1400 180A110-D-P 80 450 8.8907 6377
    313 180A210-D-P 120 800 8.8907 7320
    314 180A310-D-P 160 1050 8.8907 9479
    315 1600 180A111-D-P 120 800 10.1473 8343
    316 180A211-D-P 160 1050 10.1473 10306
    317 2000 800 200A107-D-P 2200 20 160 12 5.6121 1981
    318 200A207-D-P 27 240 5.6121 2417
    319 200A307-D-P 40 320 5.6121 3151
    320 200A407-D-P 52 450 5.6121 3753
    321 200A507-D-P 66 520 5.6121 4284
    322 1000 200A108-D-P 40 320 6.9944 3632
    323 200A208-D-P 52 450 6.9944 4156
    324 200A308-D-P 66 520 6.9944 4730
    325 200A408-D-P 80 650 6.9944 5088
    326 200A508-D-P 120 800 6.9944 5879
    327 1250 200A109-D-P 66 450 15 8.7431 5619
    328 200A209-D-P 80 520 8.7431 6314
    329 200A309-D-P 120 800 8.7431 7223
    330 1400 200A110-D-P 80 450 9.7798 6692
    331 200A210-D-P 120 800 9.7798 7663
    332 200A310-D-P 160 1200 9.7798 9861
    333 1600 200A111-D-P 120 800 11.1621 8738
    334 200A211-D-P 160 1200 11.1621 10720
    335 400 250 40A102-S-Z 500 0.63 15 10 0.4084 103 双出轴，整体式轴承座
    336 315 40A103-S-Z 0.63 12 0.5105 118
    337 40A203-S-Z 1 20 0.5105 148
    338 400 40A104-S-Z 1 15 0.6440 139
    339 40A204-S-Z 1.6 24 0.6440 168
    340 500 250 50A102-S-Z 600 0.63 15 10 0.4901 114
    341 315 50A103-S-Z 0.63 12 0.6126 131
    342 50A203-S-Z 1 20 0.6126 164
    343 400 50A104-S-Z 1.25 20 0.7728 155
    344 50A240-S-Z 2 30 0.7728 188
    345 500 50A105-S-Z 1.6 30 0.9613 216
    346 50A205-S-Z 2.7 49 0.9613 269
    347 650 315 65A103-S-Z 750 1.25 25 10 0.7658 151
    348 400 65A104-S-Z 1.25 25 0.9660 179
    349 65A204-S-Z 2 35 0.9660 214
    350 500 65A105-S-Z 3.5 40 1.2017 306
    351 65A205-S-Z 6.3 59 1.2017 410
    352 630 65A106-S-Z 4.1 40 1.5080 356
    353 65A206-S-Z 7.3 80 1.5080 469
    354 800 315 80A103-S-Z 950 1.25 25 10 0.9700 182
    355 400 80A104-S-Z 1.25 20 1.2237 214
    356 80A204-S-Z 2 30 1.2237 256
    357 500 80A105-S-Z 2.5 30 1.5221 361
    358 80A205-S-Z 4.1 40 1.5221 480
    359 630 80A106-S-Z 6 50 1.9101 551
    360 80A206-S-Z 12 80 1.9101 784
    361 80A306-S-Z 20 100 1.9101 978
    362 800 80A107-S-Z 7 50 12 2.4234 660
    363 80A207-S-Z 12 80 2.4234 908
    364 80A307-S-Z 20 110 2.4234 1109
    365 80A407-S-Z 32 160 2.4234 1320
    366 1000 80A108-S-Z 12 80 3.0203 1101
    367 80A208-S-Z 20 120 3.0203 1265
    368 80A308-S-Z 32 190 3.0203 1535
    369 80A408-S-Z 40 240 3.0203 1844
    370 80A508-S-Z 52 310 3.0203 2602
    371 80A608-S-Z 66 400 3.0203 2990
    372 1250 80A109-S-Z 40 270 15 3.7754 3105
    373 80A209-S-Z 66 320 3.7754 3887
    374 80A309-S-Z 80 450 3.7754 4156
    375 80A409-S-Z 120 520 3.7754 4377
    376 1000 400 100A104-S-Z 1150 2.5 30 10 1.4813 361
    377 500 100A105-S-Z 3.5 45 1.8425 407
    378 100A205-S-Z 6.3 75 1.8425 533
    379 630 100A106-S-Z 6 40 2.3122 613
    380 100A206-S-Z 12 73 2.3122 864
    381 800 100A107-S-Z 12 73 12 2.9336 1003
    382 100A207-S-Z 20 110 2.9336 1219
    383 100A307-S-Z 27 160 2.9336 1439
    384 100A407-S-Z 40 190 2.9336 1771
    385 100A507-S-Z 52 320 2.9336 2429
    386 1000 100A108-S-Z 12 80 3.6562 1231
    387 100A208-S-Z 20 110 3.6562 1403
    388 100A308-S-Z 27 170 3.6562 1682
    389 100A408-S-Z 40 210 3.6562 2003
    390 100A508-S-Z 52 330 3.6562 2817
    391 100A608-S-Z 66 400 3.6562 3212
    392 1250 100A109-S-Z 52 320 15 4.5702 3673
    393 100A209-S-Z 66 450 4.5702 4158
    394 100A309-S-Z 80 520 4.5702 4440
    395 100A409-S-Z 120 660 4.5702 4971
    396 1400 100A110-S-Z 66 450 5.1122 4440
    397 100A210-S-Z 120 520 5.1122 5261
    398 100A310-S-Z 160 660 5.1122 6107
    399 1600 100A111-S-Z 120 520 5.8347 7026
    400 100A211-S-Z 160 660 5.8347 8774
    401 1200 500 120A105-S-Z 1400 6.3 60 10 2.2431 617
    402 630 120A106-S-Z 12 52 2.8149 967
    403 120A206-S-Z 20 85 2.8149 1191
    404 800 120A107-S-Z 12 80 12 3.5714 1125
    405 120A207-S-Z 20 110 3.5714 1361
    406 120A307-S-Z 27 140 3.5714 1591
    407 120A407-S-Z 40 180 3.5714 1953
    408 120A507-S-Z 52 230 3.5714 2633
    409 1000 120A108-S-Z 12 80 4.4510 1387
    410 120A208-S-Z 20 110 4.4510 1571
    411 120A308-S-Z 27 160 4.4510 1860
    412 120A408-S-Z 40 210 4.4510 2213
    413 120A508-S-Z 52 290 4.4510 3051
    414 120A608-S-Z 66 330 4.4510 3487
    415 120A708-S-Z 80 450 4.4510 4016
    416 1250 120A109-S-Z 52 320 15 5.5638 4467
    417 120A209-S-Z 66 450 5.5638 4769
    418 120A309-S-Z 80 520 5.5638 5363
    419 120A409-S-Z 120 660 5.5638 6192
    420 1400 120A110-S-Z 80 520 6.2235 5676
    421 120A210-S-Z 120 660 6.2235 6567
    422 120A310-S-Z 160 800 6.2235 8750
    423 1600 120A111-S-Z 120 660 7.1031 7546
    424 120A211-S-Z 160 800 7.1031 9512
    425 1400 800 140A107-S-Z 1600 20 100 12 4.0816 1493
    426 140A207-S-Z 27 130 4.0816 1715
    427 140A307-S-Z 40 170 4.0816 2104
    428 140A407-S-Z 52 210 4.0816 2808
    429 140A507-S-Z 66 320 4.0816 3364
    430 1000 140A108-S-Z 20 100 5.0869 1715
    431 140A208-S-Z 27 160 5.0869 1997
    432 140A308-S-Z 40 210 5.0869 2380
    433 140A408-S-Z 52 260 5.0869 3243
    434 140A508-S-Z 66 300 5.0869 3711
    435 140A608-S-Z 80 450 5.0869 4244
    436 1250 140A109-S-Z 52 260 15 6.3586 4732
    437 140A209-S-Z 66 450 6.3586 5052
    438 140A309-S-Z 80 520 6.3586 5673
    439 140A409-S-Z 120 660 6.3586 6568
    440 1400 140A110-S-Z 80 520 7.1126 6008
    441 140A210-S-Z 120 800 7.1126 6967
    442 140A310-S-Z 160 1050 7.1126 9151
    443 1600 140A111-S-Z 120 800 8.1179 8002
    444 140A211-S-Z 160 1050 8.1179 9952
    445 1600 800 160A107-S-Z 1800 20 120 12 4.5918 1831
    446 160A207-S-Z 27 160 4.5918 2242
    447 160A307-S-Z 40 240 4.5918 2978
    448 160A407-S-Z 52 320 4.5918 3558
    449 160A507-S-Z 66 450 4.5918 4087
    450 1000 160A108-S-Z 27 160 5.7227 2540
    451 160A208-S-Z 40 240 5.7227 3437
    452 160A308-S-Z 52 320 5.7227 3929
    453 160A408-S-Z 66 450 5.7227 4502
    454 160A508-S-Z 80 520 5.7227 4847
    455 160A608-S-Z 120 650 5.7227 5387
    456 1250 160A109-S-Z 66 450 15 7.1534 5039
    457 160A209-S-Z 80 520 7.1534 5338
    458 160A309-S-Z 120 650 7.1534 6013
    459 160A409-S-Z 160 800 7.1534 6906
    460 1400 160A110-S-Z 80 520 8.0016 6368
    461 160A210-S-Z 120 800 8.0016 7326
    462 160A310-S-Z 160 1050 8.0016 9551
    463 1600 160A111-S-Z 80 520 9.1326 7649
    464 160A211-S-Z 120 800 9.1326 8419
    465 160A311-S-Z 160 1200 9.1326 10388
    466 1800 800 180A107-S-Z 2000 20 160 12 5.1019 1959
    467 180A207-S-Z 27 240 5.1019 2389
    468 180A307-S-Z 40 320 5.1019 3145
    469 180A407-S-Z 52 450 5.1019 3752
    470 180A507-S-Z 66 520 5.1019 4293
    471 1000 180A108-S-Z 40 320 6.3586 3627
    472 180A208-S-Z 52 450 6.3586 4148
    473 180A308-S-Z 66 520 6.3586 4716
    474 180A408-S-Z 80 650 6.3586 5085
    475 180A508-S-Z 120 800 6.3586 5657
    476 1250 180A109-S-Z 66 450 15 7.9482 5618
    477 180A209-S-Z 80 520 7.9482 6319
    478 180A309-S-Z 120 650 7.9482 7246
    479 1400 180A110-S-Z 80 450 8.8907 6696
    480 180A210-S-Z 120 800 8.8907 7686
    481 180A310-S-Z 160 1050 8.8907 9953
    482 1600 180A111-S-Z 120 800 10.1473 8760
    483 180A211-S-Z 160 1050 10.1473 10821
    484 2000 800 200A107-S-Z 2200 20 160 12 5.6121 2080
    485 200A207-S-Z 27 240 5.6121 2538
    486 200A307-S-Z 40 320 5.6121 3309
    487 200A407-S-Z 52 450 5.6121 3941
    488 200A507-S-Z 66 520 5.6121 4498
    489 1000 200A108-S-Z 40 320 6.9944 3814
    490 200A208-S-Z 52 450 6.9944 4364
    491 200A308-S-Z 66 520 6.9944 4967
    492 200A408-S-Z 80 650 6.9944 5342
    493 200A508-S-Z 120 800 6.9944 6173
    494 1250 200A109-S-Z 66 450 15 8.7431 5900
    495 200A209-S-Z 80 520 8.7431 6630
    496 200A309-S-Z 120 800 8.7431 7584
    497 1400 200A110-S-Z 80 450 9.7798 7027
    498 200A210-S-Z 120 800 9.7798 8046
    499 200A310-S-Z 160 1200 9.7798 10354
    500 1600 200A111-S-Z 120 800 11.1621 9175
    501 200A211-S-Z 160 1200 11.1621 11256
    502 400 250 40A102-S-P 500 0.63 15 10 0.4084 103 双出轴，整体式轴承座
    503 315 40A103-S-P 0.63 12 0.5105 118
    504 40A203-S-P 1 20 0.5105 148
    505 400 40A104-S-P 1 15 0.6440 139
    506 40A204-S-P 1.6 24 0.6440 168
    507 500 250 50A102-S-P 600 0.63 15 10 0.4901 114
    508 315 50A103-S-P 0.63 12 0.6126 131
    509 50A203-S-P 1 20 0.6126 164
    510 400 50A104-S-P 1.25 20 0.7728 155
    511 50A240-S-P 2 30 0.7728 188
    512 500 50A105-S-P 1.6 30 0.9613 216
    513 50A205-S-P 2.7 49 0.9613 269
    514 650 315 65A103-S-P 750 1.25 25 10 0.7658 151
    515 400 65A104-S-P 1.25 25 0.9660 179
    516 65A204-S-P 2 35 0.9660 214
    517 500 65A105-S-P 3.5 40 1.2017 306
    518 65A205-S-P 6.3 59 1.2017 410
    519 630 65A106-S-P 4.1 40 1.5080 356
    520 65A206-S-P 7.3 80 1.5080 469
    521 800 315 80A103-S-P 950 1.25 25 10 0.9700 182
    522 400 80A104-S-P 1.25 20 1.2237 214
    523 80A204-S-P 2 30 1.2237 256
    524 500 80A105-S-P 2.5 30 1.5221 361
    525 80A205-S-P 4.1 40 1.5221 480
    526 630 80A106-S-P 6 50 1.9101 551
    527 80A206-S-P 12 80 1.9101 784
    528 80A306-S-P 20 100 1.9101 978
    529 800 80A107-S-P 7 50 12 2.4234 660
    530 80A207-S-P 12 80 2.4234 908
    531 80A307-S-P 20 110 2.4234 1109
    532 80A407-S-P 32 160 2.4234 1320
    533 1000 80A108-S-P 12 80 3.0203 1101
    534 80A208-S-P 20 120 3.0203 1265
    535 80A308-S-P 32 190 3.0203 1535
    536 80A408-S-P 40 240 3.0203 1844
    537 80A508-S-P 52 310 3.0203 2602
    538 80A608-S-P 66 400 3.0203 2990
    539 1250 80A109-S-P 40 270 15 3.7754 3105
    540 80A209-S-P 66 320 3.7754 3887
    541 80A309-S-P 80 450 3.7754 4156
    542 80A409-S-P 120 520 3.7754 4377
    543 1000 400 100A104-S-P 1150 2.5 30 10 1.4813 361
    544 500 100A105-S-P 3.5 45 1.8425 407
    545 100A205-S-P 6.3 75 1.8425 533
    546 630 100A106-S-P 6 40 2.3122 613
    547 100A206-S-P 12 73 2.3122 864
    548 800 100A107-S-P 12 73 12 2.9336 1003
    549 100A207-S-P 20 110 2.9336 1219
    550 100A307-S-P 27 160 2.9336 1439
    551 100A407-S-P 40 190 2.9336 1771
    552 100A507-S-P 52 320 2.9336 2429
    553 1000 100A108-S-P 12 80 3.6562 1231
    554 100A208-S-P 20 110 3.6562 1403
    555 100A308-S-P 27 170 3.6562 1682
    556 100A408-S-P 40 210 3.6562 2003
    557 100A508-S-P 52 330 3.6562 2817
    558 100A608-S-P 66 400 3.6562 3212
    559 1250 100A109-S-P 52 320 15 4.5702 3673
    560 100A209-S-P 66 450 4.5702 4158
    561 100A309-S-P 80 520 4.5702 4440
    562 100A409-S-P 120 660 4.5702 4971
    563 1400 100A110-S-P 66 450 5.1122 4440
    564 100A210-S-P 120 520 5.1122 5261
    565 100A310-S-P 160 660 5.1122 6107
    566 1600 100A111-S-P 120 520 5.8347 7026
    567 100A211-S-P 160 660 5.8347 8774
    568 1200 500 120A105-S-P 1400 6.3 60 10 2.2431 617
    569 630 120A106-S-P 12 52 2.8149 967
    570 120A206-S-P 20 85 2.8149 1191
    571 800 120A107-S-P 12 80 12 3.5714 1125
    572 120A207-S-P 20 110 3.5714 1361
    573 120A307-S-P 27 140 3.5714 1591
    574 120A407-S-P 40 180 3.5714 1953
    575 120A507-S-P 52 230 3.5714 2633
    576 1000 120A108-S-P 12 80 4.4510 1387
    577 120A208-S-P 20 110 4.4510 1571
    578 120A308-S-P 27 160 4.4510 1860
    579 120A408-S-P 40 210 4.4510 2213
    580 120A508-S-P 52 290 4.4510 3051
    581 120A608-S-P 66 330 4.4510 3487
    582 120A708-S-P 80 450 4.4510 4016
    583 1250 120A109-S-P 52 320 15 5.5638 4467
    584 120A209-S-P 66 450 5.5638 4769
    585 120A309-S-P 80 520 5.5638 5363
    586 120A409-S-P 120 660 5.5638 6192
    587 1400 120A110-S-P 80 520 6.2235 5676
    588 120A210-S-P 120 660 6.2235 6567
    589 120A310-S-P 160 800 6.2235 8750
    590 1600 120A111-S-P 120 660 7.1031 7546
    591 120A211-S-P 160 800 7.1031 9512
    592 1400 800 140A107-S-P 1600 20 100 12 4.0816 1493
    593 140A207-S-P 27 130 4.0816 1715
    594 140A307-S-P 40 170 4.0816 2104
    595 140A407-S-P 52 210 4.0816 2808
    596 140A507-S-P 66 320 4.0816 3364
    597 1000 140A108-S-P 20 100 5.0869 1715
    598 140A208-S-P 27 160 5.0869 1997
    599 140A308-S-P 40 210 5.0869 2380
    600 140A408-S-P 52 260 5.0869 3243
    601 140A508-S-P 66 300 5.0869 3711
    602 140A608-S-P 80 450 5.0869 4244
    603 1250 140A109-S-P 52 260 15 6.3586 4732
    604 140A209-S-P 66 450 6.3586 5052
    605 140A309-S-P 80 520 6.3586 5673
    606 140A409-S-P 120 660 6.3586 6568
    607 1400 140A110-S-P 80 520 7.1126 6008
    608 140A210-S-P 120 800 7.1126 6967
    609 140A310-S-P 160 1050 7.1126 9151
    610 1600 140A111-S-P 120 800 8.1179 8002
    611 140A211-S-P 160 1050 8.1179 9952
    612 1600 800 160A107-S-P 1800 20 120 12 4.5918 1831
    613 160A207-S-P 27 160 4.5918 2242
    614 160A307-S-P 40 240 4.5918 2978
    615 160A407-S-P 52 320 4.5918 3558
    616 160A507-S-P 66 450 4.5918 4087
    617 1000 160A108-S-P 27 160 5.7227 2540
    618 160A208-S-P 40 240 5.7227 3437
    619 160A308-S-P 52 320 5.7227 3929
    620 160A408-S-P 66 450 5.7227 4502
    621 160A508-S-P 80 520 5.7227 4847
    622 160A608-S-P 120 650 5.7227 5387
    623 1250 160A109-S-P 66 450 15 7.1534 5039
    624 160A209-S-P 80 520 7.1534 5338
    625 160A309-S-P 120 650 7.1534 6013
    626 160A409-S-P 160 800 7.1534 6906
    627 1400 160A110-S-P 80 520 8.0016 6368
    628 160A210-S-P 120 800 8.0016 7326
    629 160A310-S-P 160 1050 8.0016 9551
    630 1600 160A111-S-P 80 520 9.1326 7649
    631 160A211-S-P 120 800 9.1326 8419
    632 160A311-S-P 160 1200 9.1326 10388
    633 1800 800 180A107-S-P 2000 20 160 12 5.1019 1959
    634 180A207-S-P 27 240 5.1019 2389
    635 180A307-S-P 40 320 5.1019 3145
    636 180A407-S-P 52 450 5.1019 3752
    637 180A507-S-P 66 520 5.1019 4293
    638 1000 180A108-S-P 40 320 6.3586 3627
    639 180A208-S-P 52 450 6.3586 4148
    640 180A308-S-P 66 520 6.3586 4716
    641 180A408-S-P 80 650 6.3586 5085
    642 180A508-S-P 120 800 6.3586 5657
    643 1250 180A109-S-P 66 450 15 7.9482 5618
    644 180A209-S-P 80 520 7.9482 6319
    645 180A309-S-P 120 650 7.9482 7246
    646 1400 180A110-S-P 80 450 8.8907 6696
    647 180A210-S-P 120 800 8.8907 7686
    648 180A310-S-P 160 1050 8.8907 9953
    649 1600 180A111-S-P 120 800 10.1473 8760
    650 180A211-S-P 160 1050 10.1473 10821
    651 2000 800 200A107-S-P 2200 20 160 12 5.6121 2080
    652 200A207-S-P 27 240 5.6121 2538
    653 200A307-S-P 40 320 5.6121 3309
    654 200A407-S-P 52 450 5.6121 3941
    655 200A507-S-P 66 520 5.6121 4498
    656 1000 200A108-S-P 40 320 6.9944 3814
    657 200A208-S-P 52 450 6.9944 4364
    658 200A308-S-P 66 520 6.9944 4967
    659 200A408-S-P 80 650 6.9944 5342
    660 200A508-S-P 120 800 6.9944 6173
    661 1250 200A109-S-P 66 450 15 8.7431 5900
    662 200A209-S-P 80 520 8.7431 6630
    663 200A309-S-P 120 800 8.7431 7584
    664 1400 200A110-S-P 80 450 9.7798 7027
    665 200A210-S-P 120 800 9.7798 8046
    666 200A310-S-P 160 1200 9.7798 10354
    667 1600 200A111-S-P 120 800 11.1621 9175
    668 200A211-S-P 160 1200 11.1621 11256
    工程实例
    热门设备
    联系我们

    公司名字： 上海库桥机械工程有限公司

    办公地址：上海市浦东新区川宏路365号！

    销售热线：

    手机咨询：

    扫一扫 关注我们

    Top

    拨打电话

    在线咨询
